 Message Boards » » Hanging a Heavy Mirror Page [1]
PaulISdead
All American
8547 Posts
user info
edit post

Im trying to get a feel for the the height of each side of the mating pieces of this hanger. Im thinking of using something like a ~3/4" pine plywood. Assuming the bottom piece is cantilevered 16" at each end and the top piece is anchored only at ends shown by triangles.

4/16/2014 10:00:31 AM

PaulISdead
All American
8547 Posts
user info
edit post

My guess is a 1x6 if I only supported the mirror side beam in the middle. Would still be within the stress limits for a pine board.

[Edited on April 16, 2014 at 2:11 PM. Reason : .]

4/16/2014 2:09:44 PM

MaximaDrvr

10377 Posts
user info
edit post

Why not use framing/picture wire and some anchors in studs?

4/17/2014 1:05:21 PM

PaulISdead
All American
8547 Posts
user info
edit post

Warned against. Its a narrow angle being so long I think the tension would be a bit high.

4/17/2014 3:00:26 PM

scotieb24
Commish
11029 Posts
user info
edit post

I made a frame for a bathroom mirror that I hung in my man cave. I used 1X6.

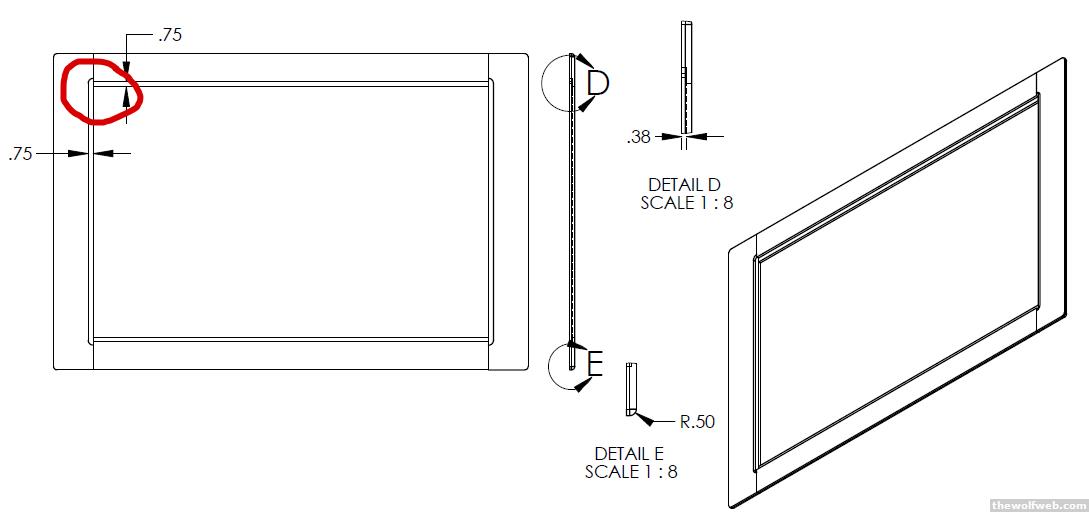

The only difference from this drawing is I switched the way the corners overlap. The horizontal cutouts go overlap the vertical cutouts instead of the way it is shown.



Then I screwed them in at the studs (At least on the bottom) using 2 1/2" or 3" screws. All the weight is on the bottom.



Not sure if that is exactly what you are trying to do or not.

edit: I think I misread what you are doing. Is your mirror already framed and you just need a single board to mount it on?

[Edited on April 17, 2014 at 4:18 PM. Reason : .]

4/17/2014 4:06:21 PM

PaulISdead
All American
8547 Posts
user info
edit post

I think I'm just going to lag a piece of perforated angle iron to the wall and bolt into that

4/19/2014 4:31:45 PM

surfer_boy6
All American
2071 Posts
user info
edit post

http://www.lowes.com/pd_56378-37672-122373_0__?productId=3058195&Ntt=picture+hangers&pl=1¤tURL=%3FNtt%3Dpicture%2Bhangers&facetInfo=

4/20/2014 7:34:26 AM
