MaximaDrvr
10401 Posts user info edit post |
shouldn't this off-topic-ness go in the gun thread? 3/7/2012 3:52:52 PM |
se7entythree YOSHIYOSHI 17377 Posts user info edit post |
Quote : | "By escalating a situation that would have resolved itself otherwise. Assuming you carry the knife for self defense (you are not sharpening pencils with it obviously), what the hell kind of situation would you ever use it in? " |
i carry a knife to cut my cuticles & sometimes my nails. i also remove tags on clothes, open food containers/bags, cut strings off clothes, etc. i have a tiny swiss army knife (cutting things, scraping under nails) & a benchmade 707 (cutting cuticles, opening food, etc). i'm a girl, btw.
oh i also use one to pry legos apart sometimes. those little 1x1 flat ones can be a bitch.
[Edited on March 7, 2012 at 4:28 PM. Reason : ]3/7/2012 4:26:47 PM |
Fumbler All American 4670 Posts user info edit post |
^^yeah, but it's easier to follow the conversation if we leave it here.
Quote : | "Also guns are more prone to injure people due to accidental discharge" |
You know, there are very very few true "accidental" discharges. We in the gun community call them what they really are, negligent discharges. Modern guns are very very safe. It's difficult to find instances where negligence was not the reason behind the cause of an unintentional discharge. Think about it. A kid takes a gun off a table and shoots himself. Someone was negligent; the gun shouldn't have been left accessible. A guy sticks his carry gun in its holster and blows off his right testicle because he left his finger in the trigger guard. That wasn't an accident, it was stupidity because any gun owner should know you don't put your finger on the trigger til you're ready to fire (whether or not they follow this is different).
I think part of the problem with people who don't like the idea of carrying guns is they don't really understand others. The type of people who legally carry concealed guns are honest. If we weren't honest we wouldn't bother jumping through the legal hoops to get a permit. We even get finger printed as part of the process. We tend to be very responsible. A person wouldn't carry if they weren't confident in their ability to safely handle a gun and store a gun. We're not looking for trouble. We're not dressed like a thug selling crack on the street or sitting in a bar getting drunk with a gun in our pocket. If you're ever in a bad situation you'd want to be with a concealed handgun permit holder whether they're carrying or not. We tend to be intelligent level headed people that have better general survival skills than the average joe. The majority of us aren't paranoid people who end up on tv shows about preparedness.
[Edited on March 7, 2012 at 4:31 PM. Reason : ]3/7/2012 4:30:09 PM |
jtw208 5290 Posts user info edit post |
^ good post. I especially like that last sentence 3/7/2012 4:32:35 PM |
phried All American 3121 Posts user info edit post |
Just picked up this 10-inch Wusthof Chef's Knife. Tried a few out and thought this one worked great. Picked up a honing steel to keep it sharp.
http://wusthof.com/desktopdefault.aspx/52_view-121/categories-121/wlang-2/tabid-75/105_read-963/categories-210
[Edited on March 7, 2012 at 5:17 PM. Reason : [] 3/7/2012 5:13:52 PM |
budlight2256 º_0 598 Posts user info edit post |
^ got a set as a gift. love it 3/7/2012 6:00:55 PM |
MaximaDrvr
10401 Posts user info edit post |
I have a set of wustoff kitchen knives that 'we' got for an wedding gift.
I carry my knife for random threads, boxes, finger nails, etc... It could be used as a weapon if it was my only option. I carry my pistol with me every day, and haven't needed it yet. There were two situations before I started carrying where guns were pulled in my presence. In both of those cases, I'm sure I would not have added my gun to the equation if I had been carrying. But, I do have it just in case. 3/7/2012 9:50:18 PM |
jtw208 5290 Posts user info edit post |
i was about to ask about sharpening with a stone, but i remembered fumbler's post from page 2:
Quote : | "I think the way to go is get the biggest, most aggressive solid (not mesh patterned) diamond stone you can afford and a medium ceramic stone at least 2x6" in size. For diamond stones I like DMT. This is the one I have, it's the really big extra coarse http://www.dmtonlinestore.com/115-Dia-Sharp-Continuous-Diamond-Bench-Stone-P13.aspx For ceramics I like Spyderco. I have the medium and a smaller super fine. A "coarse" ceramic will be finer than any diamond stone, so the medium I have is really more like a fine IMO. http://www.spyderco.com/catalog/details.php?product=82 Skip the oil, use water on diamond and ceramic if you plan on taking off a lot of material, otherwise just use them dry.
Make some sort of angled platform to put the stones on and just go at it while keeping the blade horizontal. I like 15°, 17.5°, and 20° edge angles for most knives. Start with 10 strokes on each side on the diamond stone til you raise a wire edge, then flip to the other side til you get a wire edge. Keep doing that but lessen the number of strokes and the pressure as you go until you're sharpening only once on each side, then do the same with the ceramic. Always remember that the stone will sharpen perpendicular to the edge and you'll have nice points:
Spyderco sharpmakers and the like work fine, you just have to be careful not to round off the tips and I don't like how you can't change the angles. The clamp in style guides can work well but the cheaper ones are finicky and the nicer ones are $texas. I'd rather spend my money on more knives and bench stones that are more versatile." |
I just got a small diamond/ceramic stone (Fallkniven DC4) for my EDCs and the Glock knife. Before that I was just using one of those keychain sharpmakers, which I wasn't very impressed with.]3/8/2012 9:40:05 AM |
Fumbler All American 4670 Posts user info edit post |
Diddle you try the prop the stone up at an angle and hold the knife horizontal trick? 3/10/2012 1:20:55 AM |
jtw208 5290 Posts user info edit post |
It's in the mail; I don't have it yet. But I will try that when I get it.
How do you prop the stone up and keep it from moving? The one I got is small (1.25" x 4") but I was going to try making something to serve that purpose 3/10/2012 10:25:25 AM |
Fumbler All American 4670 Posts user info edit post |
^^lol, stupid auto correct
^all of my stones have little round grippy rubber feet on the bottoms. I stack up pieces of wood or books or whatever then let the stones hang off the edge of a table so the rubber feet hook onto the edge. The far end of the stone gets propped onto the wood. I use the clinometer on my iPhone to check the angle (usually 15, 17.5, or 20 degrees).
You may have trouble doing this with a 4" stone unless you figure some way to tape it in place or something. I plan on making a fixed angle wooden platform. It'd be simple, just two pieces of wood the same size as my largest stone. I'd use a power miter box to cut a wedge out of wood to the angle I want, then glue that wedge between the two other pieces of wood. That would give me an angled platform for the stones that was always exactly the same. It seems like no matter what you do or what the clinometer says, the angle is never exactly the same when you restack things under the stone. 3/10/2012 5:54:56 PM |
Hiro All American 4673 Posts user info edit post |
I was called rambo today at work. Apparently the Recon 1 is quite intimidating to civilians... 4/17/2012 3:05:17 AM |
craptastic All American 6115 Posts user info edit post |
Yeah I get that reaction with my cara cara 2, and its a hair smaller than the recon. 4/17/2012 3:32:43 AM |
Axelay All American 6276 Posts user info edit post |
I wish that either Victorinox or Wenger would allow for tool customization of their Swiss Army knives. I have very specific tool needs (mainly for tech quick fixes when I don't have my toolbox with me), and I can't find any one model which has everything which I want. I've been using a Victorinox Workchamp (http://www.swissarmy.com/us/product/Swiss-Army-Knives/Category/Do-It-Yourself/WorkChamp/53761) for a very long time since it's about as good as I'm going to get. I really wish that it had a one-handed blade like some of their newer models, though. 4/17/2012 10:44:53 AM |
Fumbler All American 4670 Posts user info edit post |
I get called Rambo when I wear my Scrap Yard 711. I guess it's fitting since it's a big ass knife.
I got a 1x30" belt sander from Harbor Freight. It was only $50. I'm going to make some legs or something for it to sit on its back. I think I'll even make it so I can set it at varying angles. So far I've sharpened a few machetes and kitchen knives on it. It kicks ass, especially since I don't have to wear out my $80 extra coarse diamond stone and it's way way faster. I'll post pics one day after I have it set up.
[Edited on April 17, 2012 at 11:08 AM. Reason : ] 4/17/2012 11:01:40 AM |
jtw208 5290 Posts user info edit post |
what grade sandpaper do you use with the belt sander? 4/19/2012 6:05:22 PM |
Colemania All American 1081 Posts user info edit post |
Just got my SOG Twitch II in the mail today -- really nice for what it is:
4/19/2012 8:31:17 PM |
Fumbler All American 4670 Posts user info edit post |
^^For reprofiling axes and machetes I use 60 or 80 grit. For regular sharpening 150 or 220. I haven't finished an edge on it yet though I'm sure a 320 grit belt would work just fine for that. With a machine you don't need as fine a grit to get the same finish as stones; you just use a lighter touch.
I'm not going to finish edges on it til I get the kinks worked out. Right now there's a bunch of runout on two wheels which makes the belt jump off the platen a little. I'll fix that somehow then square up the platen and it should be good for more sensitive stuff like small knives and fine edges.
I also plan on making a leather belt to use as a strop. It should be one hell of a strop. I'm looking forward to trying some toothy 150 grit and stropped edges for skinning and cutting meat. Also looking forward to fully polished convexed edges on chopping tools. 4/20/2012 12:12:11 PM |
skeeter IDFWY 1538 Posts user info edit post |

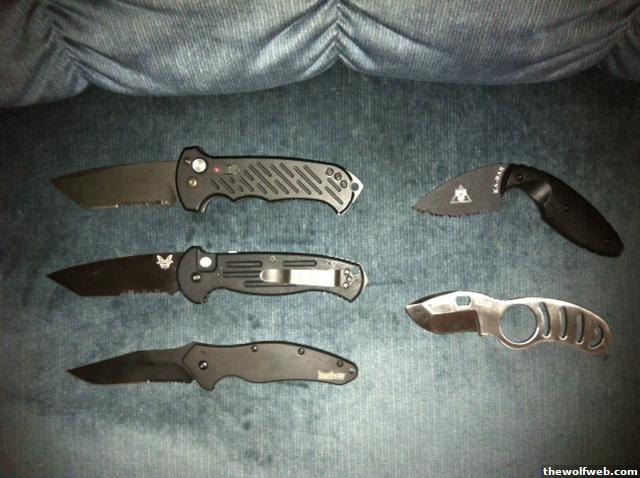

So I have a knife fetish and usually have 3-4 knives on me along with my G19. Below is my EDC while on duty minus the G19.
Top Left : Gerber 06 Auto Middle Left: Benchmade 9502 Bottom Left: Kershaw Shallot Top Right: KA-BAR TDI Serrated Bottom Right: 5.11 Tactical Boot Knife
[Edited on May 7, 2012 at 11:58 AM. Reason : ] 5/7/2012 11:58:34 AM |
Fumbler All American 4670 Posts user info edit post |
I'm making knives. Check this out...
This is the first full sized knife design:
I'm calling it the Ranger. Blade length is 4", 9-9.5" overall. It'll be 3/16" A-2 or O-1 with a high saber grind and micarta handles. Base price will be around $200.
The next knife I'm making will be a small neck knife with available handle slabs. It's named the Parker after my unborn baby.
It'll be 1/8" O-1 with a 2" blade and 5.25 overall length. The non handle slab models with have some lightening holes. Base price without slabs will probably be around $75. With slabs will probably be around $90.
Here's a shot of some blanks:
The Parker in this pic actually has a handle about 1/8" longer than what I'll normally make because my brother in law said it looked too short. idk if I'll produce them with the slightly longer handle or stick with the original. I have large hands with skinny fingers and the original is just right.
I'll be offering options like steel upgrades, different handle materials, different finishes (regular satin, hand rubbed satin, bead blast on stainless blades, KG Gun Kote in different colors), different blade lengths, lightening holes under the grips, and so on. I'll do my own heat treating on O-1 but I have to send A-2 off. I may switch to all air quenched steels and send everything off in the future depending on how long the heat treat takes on the first batch.
Future models will include a Forester, which will be like the Ranger but slightly narrower in profile. I also plan on making one called the AT Hiker; a bushcraft-ish knife. Every manufacturer needs a fighting knife too, so I'm going to make the "Rocky Mount Toothpick," a 5" blade 10" overall drop point/semi spear point knife that's sort of like a dagger.
What's everyone think? Anyone want to buy one?
[Edited on May 30, 2012 at 10:35 AM. Reason : ] 5/30/2012 10:27:45 AM |
sumfoo1 soup du hier 41043 Posts user info edit post |
that's awesome..
how do you harden the steel?
This looks like a hobby i could be down with 5/30/2012 12:13:45 PM |
quagmire02 All American 44225 Posts user info edit post |
very neat...i'd be interested, but i'm too cheap
i want a ka-bar becker necker, but i can't bring myself to spend the ~$35 5/30/2012 12:54:13 PM |
Fumbler All American 4670 Posts user info edit post |
^the Becker necker seems like a good neck knife, especially at that price.
^^it depends on the steel but basically you heat it and let it slowly cool to remove any internal stress, heat it up to whatever its critical temp is (1500-1800 degrees), quench it in oil or air, then temper it 2-3 times at 300-600 degrees. 5/30/2012 1:38:43 PM |
sumfoo1 soup du hier 41043 Posts user info edit post |
do you use a torch or an oven or something for the 1600* quench one...
(basically i know the material theory behind it but i don't know how accurate and even it needs to be) 5/30/2012 1:45:28 PM |
NeuseRvrRat hello Mr. NSA! 35376 Posts user info edit post |
make me a hunting knife 5/30/2012 6:55:36 PM |
skywalkr All American 6788 Posts user info edit post |
Stopped by this guys shop:
http://www.irbiknives.com/
when I was in Alaska and he took us in the back and showed us all their equipment and handle materials. He mainly uses chainsaw guide bars for the metal which I thought was interesting. Some of the stuff they have for handles was insane, things like wooly mammoth ivory and fossilized whale penis were some of the ones that stuck out to me. I mean I didn't even know you could find wooly mammoth ivory. 5/30/2012 7:40:43 PM |
Fumbler All American 4670 Posts user info edit post |
^Those are some ugly knives I don't know what steel is used in chainsaw bars, but I'm guessing it's something a lot more mild than you'd want in a knife like 1040 or 1050. Neat handle material options though.
^^^It depends on the steel. Simple steels can be heat treated with torches or any other heat source that will get high enough. A BBQ grill with a blow dryer to fan the flames will work. I've made a small knife and heat treated with a propane torch and it worked just fine. You just heat until it becomes non-magnetic, then quench in oil or brine. If you want steel that you can easily heat treat yourself then get O-1, 1075, or 1084
Steels with more ingredients (stainless steels and more advanced tool steels) are more sensitive to temperature and must be done in a controlled oven. Most of those are also air quenched. You can't just heat it up to non magnetic. Some won't harden correctly if you're off by 50 degrees or don't hold it at the right temp for the right amount of time.
Here's a progress pic of a Ranger with the mock grips on it.
After looking at my blanks, a couple of people have mentioned that the blade is too broad. What they don't realize is blanks and ground knives don't look the same. 5/31/2012 12:14:24 AM |
BigMan157 no u 103354 Posts user info edit post |
what's with the nub at the tip? 6/2/2012 5:19:39 PM |
NeuseRvrRat hello Mr. NSA! 35376 Posts user info edit post |
i asked the same thing in a pm and fumbler said:
Quote : | "The tab is a heat sink and also prevents the edge of the spine from rolling while its being ground. It's eventually ground off. " |
6/2/2012 10:26:31 PM |
colter All American 8022 Posts user info edit post |
Have you had any intsruction on knifemaking or are you just doing it yourself? Your grinds seem pretty clean, but I'd like to see a finished product and how they line up, plus a depth check to make sure they're even.
Another thing I'd do is add a small choil at the base of the grind to ease in effectifely sharpening the entire blade. without one its hard to sharpen the edge all the way down.
If I were you I'd grind about 100 blades first and get decent at grinding before you started selling them. I have well over 100 scrap knives in a bucket I made and didnt like how they turned out. I've been making knives since I was 14, and only in the past couple years have a gotten to the point where I feel comfortable selling them. I like your designs, they should work fine, but I'd make a few and field test them, really hard, first.
What grinder are you using? you only doing stock removal?
oh and its true, chainsaw chains, steel braided wire cable and even railroad spikes stamped "HC" dont have enough carbon in them to make an effective knife that will hold an edge and function as a working knife. I've made damascus cable knives for shiggles but they dont provide the performance a knife should.
Good luck Chris, I'm glad to see you finally got into it! you ever want to do some forging let me know. 6/3/2012 5:28:26 PM |
Fumbler All American 4670 Posts user info edit post |
I haven't had any instruction, just what I've read online and the little bit I've learned on my own. You'll see plenty of pics within a couple of weeks Honestly I'm surprised at how easy it is to get grinds straight and even. I dunno what the big deal is for some people to get the plunge lines even either. I've always had a knack for seeing symmetry and small detail.
Quote : | "Another thing I'd do is add a small choil at the base of the grind to ease in effectifely sharpening the entire blade. without one its hard to sharpen the edge all the way down." |
I hate knives without "sharpening choils." I add them to my factory knives if they don't have them. I was going to add the small choil to my knives after grinding/before heat treat so the edges of the choil wouldn't round off while rough grinding due to belt slap (shitty grinder, read below). Would you do otherwise?
Quote : | "If I were you I'd grind about 100 blades first and get decent at grinding before you started selling them. I have well over 100 scrap knives in a bucket I made and didnt like how they turned out. I've been making knives since I was 14, and only in the past couple years have a gotten to the point where I feel comfortable selling them. I like your designs, they should work fine, but I'd make a few and field test them, really hard, first. " |
The first few would only be sold to close friends til I, and they could really test them. As far as how many knives I grind before I sell them to others, I figured if everything looks perfect and my test samples are good then it wouldn't matter if it was the 10th or the 100th knife I ground, right?
Quote : | "What grinder are you using? you only doing stock removal?" |
Don't laugh. Well...laugh if you want to; my grinds are straight, right? I'm using a $50 Harbor Freight 1x30" belt sander. One third horsepower makes for some stupidly slow grinding but a steady hand and some patience helps. BUT, I'm ordering up a KMG with the 1.5hp VFD motor after I finish this post I actually bought the HF sander for only sharpening and reprofiling edges. It's a decent product if you grind the runout out of the wheels.
I'm only doing stock removal. After we last talked about knives I played around with forging some small pieces of O-1 using two propane torches for a heat source, a piece of a railroad for an anvil, and a framing hammer with its face ground flat. I didn't know wtf I was doing and it didn't work out. I did manage to make and successfully heat treat some very small knives with the torches and stock removal on the little combo belt/circular sander I have. I'm not going back to forging for a while and when I do I'm going to pay you a visit so you can learn me a thing or two.
I've decided that after I use up my O-1 I'm just going to go with air hardened steels and outsource the heat treat to Peters. Your comment about testing knives is basically why I'm going to outsource that part. Heat treat plays a huge part in performance. I don't have the resources right now to get consistent HT results in a high enough volume and my time would be better spent doing other things.
Here's a closer pic of a grind line. The final grind will be around 1/4" to the spine.
Here's one of the Parkers. The grind lines need to be cleaned up and the choil added then I'll HT it. I made a booboo on the top handle hole but fixed it later by grinding the front edge of the handle down til the hole was centered.
In this pic the bottom knife's grind is close to finished height. The bottom one will have birdseye maple scales. If you pay close attention you can see the results of some belt slap along the edges. Luckily that small amount of edge rolling will be taken out after the knife is sharpened but it would remain at the choil if I put the choil in too soon.
BTW colter, what are your favorite belts?
[Edited on June 5, 2012 at 12:30 AM. Reason : ]6/5/2012 12:29:14 AM |
colter All American 8022 Posts user info edit post |
hey I think your grinds look great! not laughing at all at your grinder, I started out with a coal forge and some files, all hand work for the win. I use a 2x72 bader with primarily light backing aluminum oxide belts, but I rarely do stock removal, so usually use higher grits for finishing, removing forging scale etc. what are you using to cut your blades out with? I think you're doing a terrific job! keep up the good work, and when you get some done up, I'll buy one. 6/10/2012 7:51:39 PM |
Fumbler All American 4670 Posts user info edit post |
My KMG is almost completely sey up; I just have to bolt the frame to my work bench. I made a riser to mount the motor and VFD above the grinder's drive shaft rather than in front. That was kind of a pain in the butt but I'm saving a lot of work bench space.
I've got a Harbor Freight horizontal/vertical metal cutting bandsaw to cut my blanks. It's no faster than me going full speed with a hack saw but at least with the band saw all I have to do is feed the metal. I'm going to look into getting blanks cut with a water jet. Do you do all your work while forging or do you use anything to cut blanks?
I'd definitely like to get one of my knives in your hands. You've probably used more knives than I have and pushed them farther too. It'd be good to get some feedback from someone who knows more about knives than most everyone else. I've got some Rangers in A2 at the heat treater now. Do you want one out of A2 or do you want to hold out for my next batch that's going to be made with CPM 3V? I've never used 3V before but it's supposed to be more than twice as tough as A2 and keep an edge a little longer than A2. 6/13/2012 1:31:22 AM |
jtw208 5290 Posts user info edit post |
those blanks looks awesome for being hand cut on a bandsaw. I thought you were having someone laser or waterjet them] 6/13/2012 1:05:54 PM |
Skack All American 31140 Posts user info edit post |
Lost a pre-production Benchmade 773 last week. Hoping it will show up somewhere in my truck, but no luck so far.
Hope someone finds it who can appreciate it.
[Edited on June 13, 2012 at 3:34 PM. Reason : s]
6/13/2012 3:32:24 PM |
darkone (\/) (;,,,;) (\/) 11610 Posts user info edit post |
Can anyone recommend someone to sharpen this knife or a sharpening rig that will handle it? I've sharped more traditional blade shapes before, but I'm not really sure how to handle the different curves on this knife.
6/13/2012 4:48:02 PM |
BigMan157 no u 103354 Posts user info edit post |
I hate the lock on that knife 6/13/2012 5:58:20 PM |
darkone (\/) (;,,,;) (\/) 11610 Posts user info edit post |
I love the lock on that knife. 6/13/2012 6:09:06 PM |
Fumbler All American 4670 Posts user info edit post |
Quote : | "those blanks looks awesome for being hand cut on a bandsaw. I thought you were having someone laser or waterjet them" |
Those blanks were ground on a sander after the bandsaw work. There's no way I could cut anything that cleanly on a bandsaw. I haven't priced out some water jet work yet. After using my new grinder, ive figured the cost of waterjet cutting blanks can't be more than about 4-5 bucks each. That KMG with a 36 grit belt will eat through steel like its wood so roughing out a blank is easier than I thought it would be. I don't have to use the slow bandsaw as much when I can simply grind the metal off in a couple of seconds.
Quote : | "Can anyone recommend someone to sharpen this knife or a sharpening rig that will handle it? I've sharped more traditional blade shapes before, but I'm not really sure how to handle the different curves on this knife." |
All you have to do is get some rods. You can also get a smith's oval cross sectioned diamond rod. You could freehand it but a rod holder would be nice. It's best to keep the edge perpendicular to the rod but if you find that difficult it'd be fine to just keep the overall blade perpendicular to the rod.6/14/2012 1:25:13 AM |
Fumbler All American 4670 Posts user info edit post |
How's this?
Close up of the thin white liners and choil
Lanyard hole
I've got two in CPM 3V at the heat treater as well as some smaller blades. The waterjet is going to cost $10-11 per blade It still beats trying to consistently drill holes in the right spots 7/3/2012 8:17:41 PM |
sumfoo1 soup du hier 41043 Posts user info edit post |
damn i like this alot. 7/3/2012 8:43:04 PM |
BigMan157 no u 103354 Posts user info edit post |
that's pretty nice man 7/3/2012 9:57:25 PM |
Fumbler All American 4670 Posts user info edit post |
Thanks guys.
Here's a pic in hand for reference. My hands are long medium/skinny large size.
Today I actually came up with my maker's mark.
It didn't come out clean. There were a few little holes where the etchant must've worked its way through. I was mad at first but now I actually like the messy look.
It looks less naked with a mark.
I'm pretty hard on myself as far as making things perfect. The only thing on this knife that I believe is close enough to perfect is the edge. That's funny because the one thing I thought I'd really screw up was the edge. I found a pretty damn good way to sharpen knives. I took my lil harbor freight sander and clamped it to the adjustable angle platen on my grinder so the sander was horizontal and the belts moved away from me. Then I adjusted the angle of the platen so my sander's work surface was inclined 15 degrees in relation to me. It's the perfect way to easily finish an edge with a consistent angle. I took most of the edge off with a 220 grit belt, smoothed it out with a 400 grit belt, then clamped a leather strop to the sander's platen (thus keeping the angle I've been working with) and lightly finished the edge on the strop.
It's been a long, long road. It's been about 6 weeks since this whole thing first started. If you take oout the 2.5 week this particular knife spent at the heat treater, it took 3.5 weeks to make this. It didn't take that long to make this one knife, but it did take that long before I had one finished product. I currently have three waiting for finishing, 7 at the heat treater, and probably 20 or so that are still in metal bars. I think I'm finally getting to the point at which I know what my work schedule is and I'm getting better at it. It seems a lot of my time was spent setting up equipment and waiting on parts. That's done for the most part. I should be able to really crank them out now.
[Edited on July 5, 2012 at 12:46 AM. Reason : ] 7/5/2012 12:46:00 AM |
Hiro All American 4673 Posts user info edit post |
^ I am very impressed. That is awesome buddy. Great work! 7/5/2012 2:44:21 AM |
NeuseRvrRat hello Mr. NSA! 35376 Posts user info edit post |
yeah man, way cool 7/5/2012 6:26:32 AM |
quagmire02 All American 44225 Posts user info edit post |
damn...good job, man...that looks great
and i like the "messy" mark, too 7/5/2012 8:40:01 AM |
Fumbler All American 4670 Posts user info edit post |
I'm kinda hogging this thread, but since no one has any other knife stuff to talk about I don't feel so bad.
Here's the kydex sheath I made. It's made to fit with large Tek-loks (not pictured). I made a drop loop for it. I'm real happy about the fit as it snaps in very tightly with no movement and has just the right amount of tension. It comes out easily, just grab the handle and push forward on the sheath with your thumb. Also pictured is a ferro rod I made with the same handle material and a white liner as well as a rod loop for the sheath. The rod's lanyard worked out well. I just tied a big knot in the end and you wrap it around the rod loop then jam the knot between the rod and sheath to keep the rod from falling out. The handle looks like it has dark spots due to handling. The handle looks lighter and you can see the "grain" more when it's clean. That's just how micarta acts.
7/5/2012 11:07:22 PM |
colter All American 8022 Posts user info edit post |
Hey, Those turned out GREAT! if I were you I'd be really pleased with what you've done. my first attempts didnt come out near as nice. I really like the deep blade depth on the large one especially, that will make it a good worker, and the grinds look really nice. scales appear to be well contoured, and the liners add a nice touch. the choil is good as well, most makers dont get that concept on a working knife. are you using corby style pins/ rivets? what are you looking to get for your largest model, in 3V with a sheath? cos I'm in for one, and I'll put it through its paces. 7/6/2012 8:43:08 PM |
Fumbler All American 4670 Posts user info edit post |
The Ranger (bigger one in all the pics) starts at $200 with A2 steel, plain black canvas or linen micarta, and regular satin finish. Overall length is around 8.75" with a blade length of around 4".
Here's a list of options: -CPM 3V +$30 -Hand rubbed satin finish +$45 -KG Gunkote finish +$25. I have satin black and "stainless" Gunkote on hand but will get other colors if requested. -Green canvas micarta +$5 (almost an olive drab color). I can get other colors or materials but the added price will depend on the specific material. -Handle liners +$15; single liners or in combinations. In vulcanized paper I have thin and thick red, thin and thick white, thin and thick black, and thick yellow. In thick (0.03") G10 I have blaze orange and pink. -Basic black kydex sheath riveted to fit large Tek-Loks (tek-lok not included) +$30 -Kydex belt loop for sheath +$10 -Nylon belt loop for sheath +$15 -5/16" diameter firesteel with matching handle +$40 (firesteel loop is free if you buy a sheath and firesteel) -Basic leather sheath +$45. Color can be natural tan or black and a firesteel loop can be included if you buy a firesteel.
I can do just about anything you can think of including other steels, different blade lengths, mosaic pins, or whatever. Just let me know and I'll give you a quote.
I use regular 416 stainless pins but will do Corby pins for $10 more. I've never heard of regular pins failing other than in flexible knives. All knives will be repaired or replaced if they fail as long as the damage wasn't intentional for as long as I am making knives. Not covered is normal wear and natural material handles. Accessories aren't covered, but I'm a reasonable man so long as you ask nicely.
Here's a work in progress. It's black linen micarta with thick red liners and a glass breaker butt instead of a rounded butt. A glass breaker butt can be added for no cost.
The lanyard hole in this one is actually an oval. All others will have round holes, I was just playing around with this particular knife. 7/8/2012 12:48:38 AM |
colter All American 8022 Posts user info edit post |
fuckin badass! 7/8/2012 4:18:38 PM |
