I just need a circle with lots of radii equally spaced.

WTF

I don't know how to do it and good isn't helping.

They didn't teach us this in A school.

1/13/2011 10:26:00 PM

3.14159

1/13/2011 10:27:10 PM

array

[Edited on January 13, 2011 at 10:30 PM. Reason : of the polar variety]

1/13/2011 10:28:52 PM

I hate it when good doesn't help

1/13/2011 10:29:01 PM

Quote :

"MAKE BIKE WHEEL"

1/13/2011 10:30:49 PM

1/13/2011 10:32:25 PM

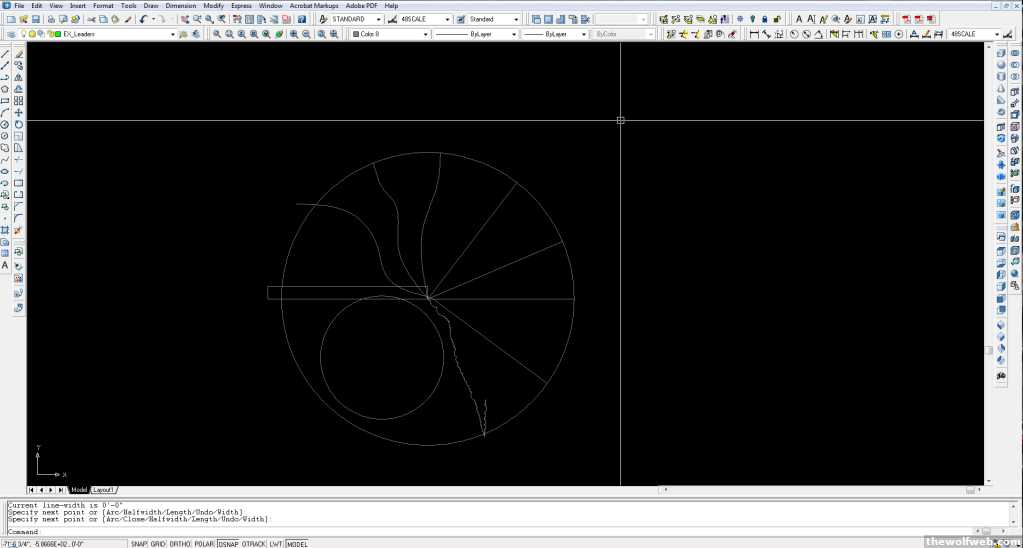

this is the best I can do:

1/13/2011 10:33:22 PM

^

1/13/2011 10:39:58 PM

Pwned

1/13/2011 10:43:31 PM

look up polar array

1/13/2011 10:55:09 PM

shit

circle -> dia = 27"
polyline from top center to bottom center
mirror polyline at whatever angles gives you the proper # of spokes.

or are you trying to do this in 3D?

1/13/2011 11:47:39 PM

polar array w/number of objects is waaaaaaaaaaaaay easier and faster

1/14/2011 12:56:13 AM

Spokes nigga spokes

I'm AstralAdvent and i approved this message

1/14/2011 12:57:53 AM

make one endpoint of each radius the center of the circle

then for n radii, in a circle of radius r centered at the origin, where one radius is in the positive x-direction, the other endpoint for the jth radius is at

(r*cos(2pi*j/n), r*sin(2pi*j/n))

where j ranges from 1 to n

then rotate and translate the whole thing to wherever you need it

1/14/2011 1:00:25 AM

1/14/2011 1:19:01 AM

just eyeball it, there's not an "easy" way.

1/14/2011 8:43:00 AM

After you have the spkes, draw some circles for the hub and trim all the lines in the middle of that circle.

1/14/2011 8:50:36 AM

Polar array. just draw one spoke and polar array helps you copy and rotate it, you just tell it how many copies you want and choose a point to rotate the spoke around. gl.

1/14/2011 9:06:00 AM

for real though, i use autocad EVERY DAY and this is the best I could do.



[Edited on January 14, 2011 at 9:08 AM. Reason : Good luck.]

1/14/2011 9:08:21 AM

Put everything on layer 0.

1/14/2011 9:11:20 AM

^^ That dog won't hunt, son.

1/14/2011 9:12:16 AM

that's no dog. that's a bike wheel.

can't do it in SolidWorks either.



[Edited on January 14, 2011 at 9:13 AM. Reason : .]

1/14/2011 9:12:44 AM

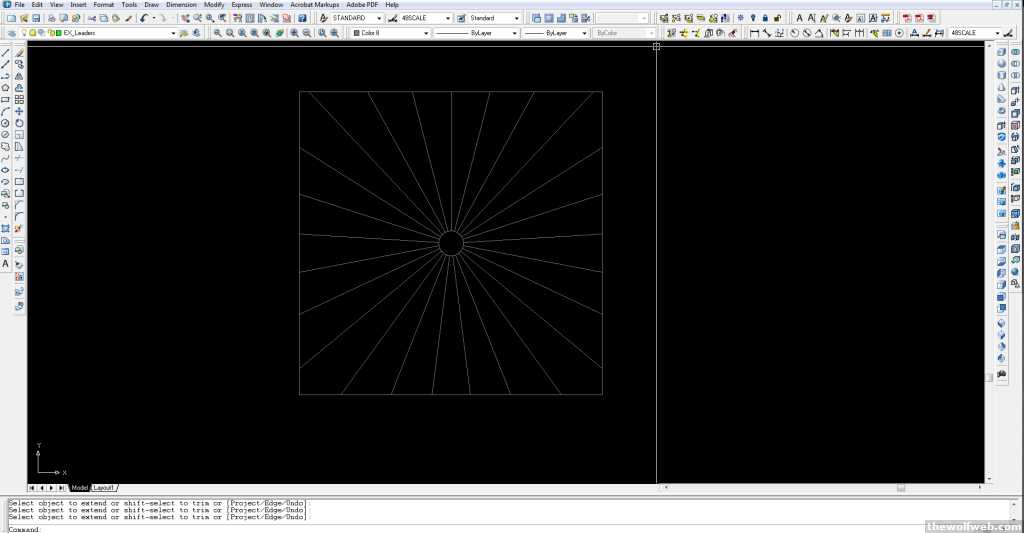

Took my longer to upload than to draw.

Draw a big circle
Draw a small circle
Draw a horizontal line through the middle
draw a vertical line through the middle
Draw a chord from each of the previously drawn lines (i.e. inscribe a square in the big circle)
Draw a line from the midpoint of each chord through the middle of the circle
Draw a chord to each of the new lines (ie draw a 12 sided polygon inside the big circle)
Draw a line from the midpoint of each of those chords through the middle of the cirlce
Delete construction lines
Trim all lines in the middle of the small circle.

[Edited on January 14, 2011 at 9:22 AM. Reason : -]

1/14/2011 9:19:25 AM

...i don't see it. is it upside down?

1/14/2011 9:20:44 AM

that looks like one of the parachutes we had in elementary school pe

1/14/2011 9:20:50 AM

that spoke pattern would not work

1/14/2011 9:21:55 AM

don't listen to these jokers about polar array... i just tried it and i think it divided by zero or something

1/14/2011 9:23:25 AM

^^Your spoke pattern wont work >:|

[Edited on January 14, 2011 at 9:23 AM. Reason : -]

1/14/2011 9:23:29 AM

jethromoore clicked the "spirograph" option. don't do that.

I THINK I GOT IT
